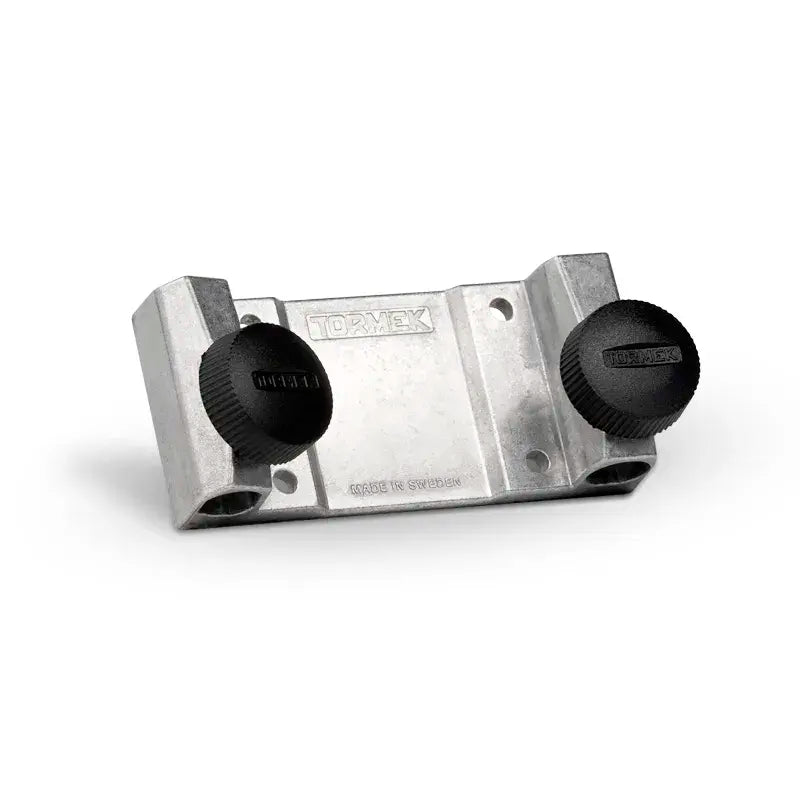

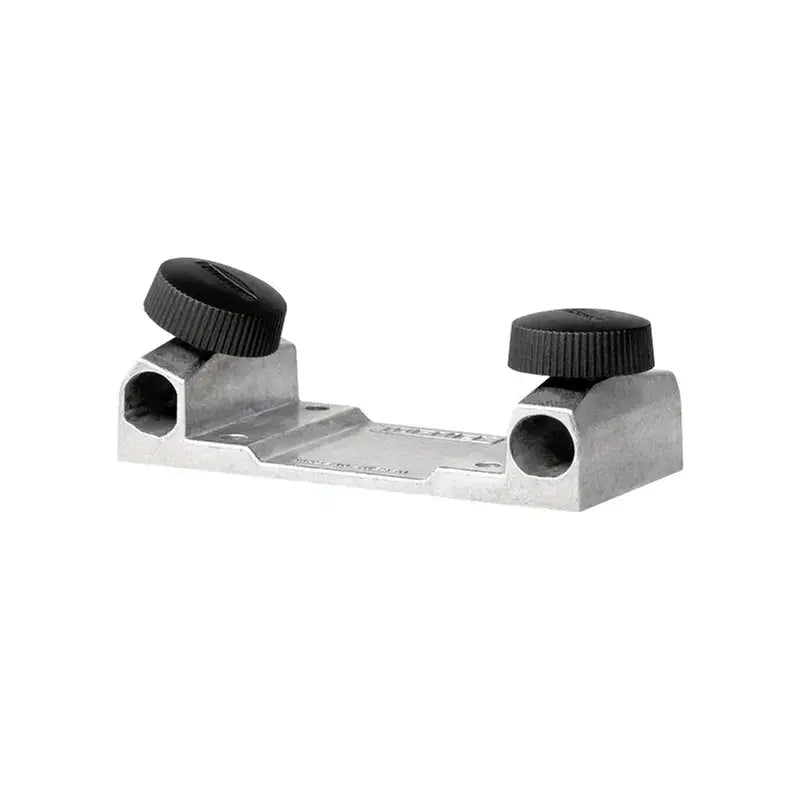

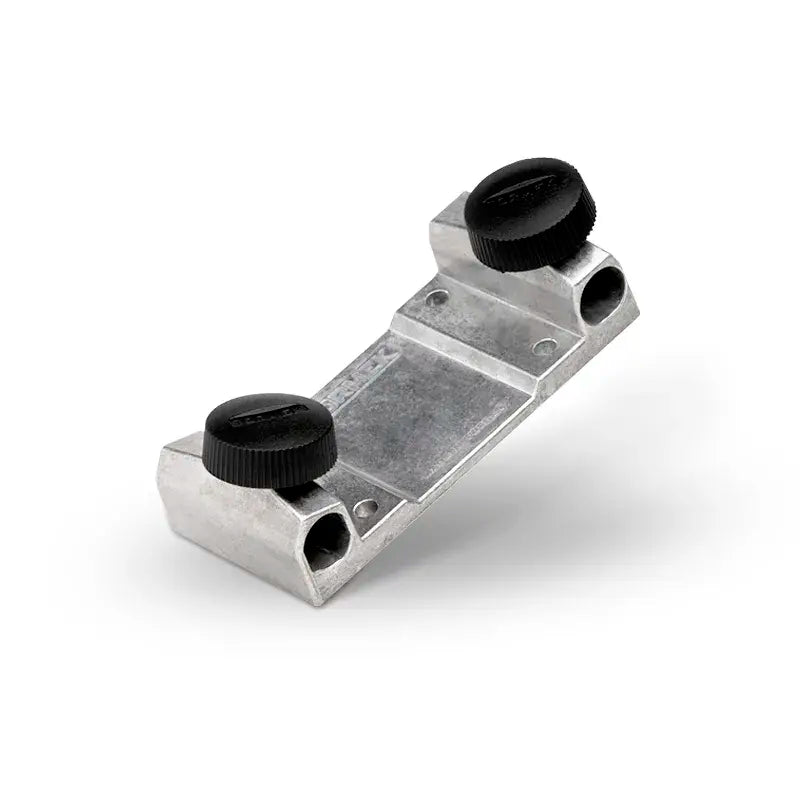

XB-100 Horizontal Base

Horizontal precision mounts for old machine models.

The XB-100 Horizontal Base allows you to sharpen with the rotation of the grinding wheel running away from the edge (edge trailing) instead of into the edge (edge leading). The XB-100 Horizontal Base was supplied as standard on all Tormek S-2000 and S-1200 machines after 8 August 2001. If you have an older machine, you can upgrade it with a horizontal base.er machine models.

Why XB-100 Horizontal Base?

• Horizontal precision mounts for older Tormek machines.
• Allows horizontal sharpening where the grinding wheel rotates away from the edge instead of into it.
• Allows honing with jigs on the universal support for maximum precision.
• Fits the Tormek 2000, Tormek 1200 and older machines from before 8 August 2001.

Sharpening with edge trailing

The XB-100 Horizontal Base allows you to sharpen your tools with the grinding wheel rotating away from the edge (edge trailing) instead of into the edge (edge leading). This is a great advantage when sharpening woodturning gouges using the SVD-186 R Gouge Jig, for example. That's because sharpening edge leading with the SVD-186 R Gouge Jig risks causing the blade to catch on the grinding wheel.

Hone your tool with precise jigs

The XB-100 Horizontal Base also gives you the ability to hone your tools using the universal support and jigs, as you can hone edge trailing. This allows you to set the jig for maximum precision when honing.

The XB-100 Horizontal Base was supplied as standard on all S-2000 and S-1200 machines after 8 August 2001. If you have an older machine, you can upgrade it with a horizontal base.

Weight

Shipping weight 0.16 kg (0.35 lb)

Color

Gray

Material

Zinc

Warranty

2-year warranty

Documents

Installation XB-100Pdf, 417.6 kB.

Patents

To see all patents, please visit tormek.com/patents
